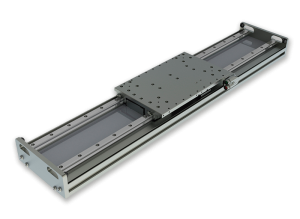

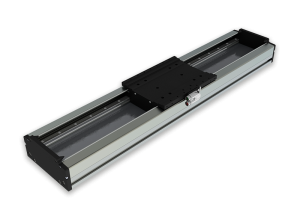

| Motor Type | MLS1 | MLS2 |
| Data Sheet | MLS1_EN | MLS2_EN |
| Peak Force | 450 - 2700N | 450 - 2700N |
| Continuous Force | 200 - 1200N | 200 - 1200N |
| Stroke Length | up to 6m *** | up to 6m *** |
| Feedback | 1Vpk-pk SIN/COS Incremental 5V TTL Absolute BiSS-C or SSI | 1Vpk-pk SIN/COS Incremental 5V TTL Absolute BiSS-C or SSI |
| Position Repeatability | ±5 micron | ±5 micron |
| Max Velocity | 3 m/s | 3 m/s |
| Voltage | 230 VAC | 230 VAC |
| Fully integrated Flatbed motor stages including dual linear guides, incremental or absolute encoder measuring system, Maglev gravity equalisation, end switches and power chain. High force linear motors are offered with peak forces up to 4000N, high speed to 9m/s and long stroke lengths to 6000mm. These linear motors are maintenance free. | ||
|  |  |

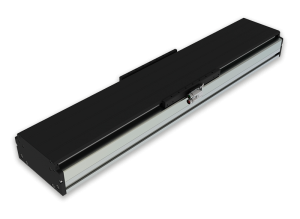

| Motor Type | MLS3 | MLS4 |
| Data Sheet | MLS3_EN | MLS4_EN |
| Peak Force | 450N - 2700N | 450N - 2700N |
| Continuous Force | 200N- 1200N | 200N- 1200N |
| Stroke Length | up to 6m *** | up to 6m *** |
| Feedback | 1Vpk-pk SIN/COS Incremental 5V TTL Absolute BiSS-C or SSI | 1Vpk-pk SIN/COS Incremental 5V TTL Absolute BiSS-C or SSI |
| Position Repeatability | ±5 micron | ±5 micron |
| Max Velocity | 3 m/s | 2 m/s |
| Voltage | 230 VAC | 230 VAC |
*** Other stroke lengths available upon request
Fully intergrated vertical axis Flatbed motor stage including dual linear guides, incremental or absolute encoder measuring system, Maglev gravity equalisation, end switches and power chain. Maintenance free.
