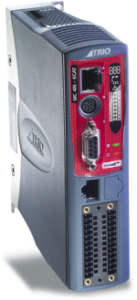

EtherCAT Controller Features:
- Up to 32 EtherCAT digital drive axes
- Up to 1024 EtherCAT I/O
- EtherCAT CoE protocol to CiA 402
- Linear, Cicular, Helical and Spherical Interpolation
- Flexible CAM shapes, Linked Motion
- Isolated encoder port
- EnDAT and SSI absolute encoder supported
- Hardware linked output for camera / laser control
- Ethernet-IP / Modbus TCP / Trio ActiveX / Uniplay HMI / UDP / Ethernet interface built-in
- Precise 64 bit motion calculations with 532MHz ARM 11 processor
- IEC 61131-3 programming
- Multi-tasking BASIC programming
- Text file handling
- Robotics transformation
- 4 high speed registration inputs
- Isolated RS232 and RS485
- SD Memory card slot
- CANopen I/O expansion
- Backlit LCD display
- RoHS and CE approved
